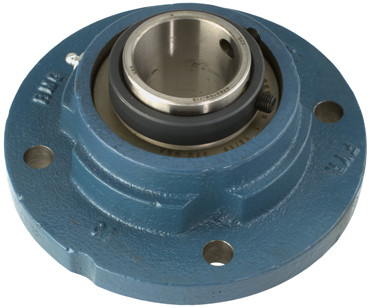

SKF F4BR 307-SRB-SRE

  • SKUQG86NZ
  • Brand
  • Manufacturer Part #F4BR 307-SRB-SRE
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,078.22

SKF F4BR 307-SRB-SRE Specifications

  • Bearing Design:
    Expansion
  • Bearing Type:
    Spherical Roller Bearing
  • Bolt Circle Dia.:
    9 1/2 i
  • Bolt Hole Size:
    13/16 in
  • Bolt Hole Spacing:
    6.718 in
  • Bolt Size:
    3/4 in
  • Duty:
    Heavy-Duty
  • Dynamic Load Rating:
    56900 lbf
  • End Type:
    Open End
  • Flange Thickness:
    1 1/8 in
  • Flange Type:
    4-Bolt Flange
  • Housing Construction:
    1 Piece
  • Housing Height:
    11 1/8 in
  • Housing Length:
    11 1/8 in
  • Housing Material:
    Cast Iron
  • Housing Width:
    3 1/16 in
  • Inch/Metric:
    Inch
  • Length Through Bore:
    4 1/32 in
  • Locking Device:
    Setscrew Locking Collar
  • Lubrication:
    Relubricatable
  • Mounted Unit Duty:
    Heavy-Duty
  • Overall Width:
    4 9/32 in
  • RPM [MAX]:
    1300 rpm
  • Seal Type:
    Contact Seals
  • Shaft Dia.:
    3 7/16 in
  • Style:
    4-Bolt Flange
