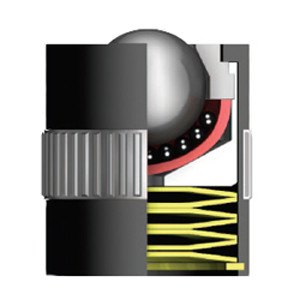

SKF DL 40-13 Ball Transfer Unit

  • SKUCU44NV
  • BrandSKF
  • Manufacturer Part #DL 40-13
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$177.57

SKF DL 40-13 Ball Transfer Unit Specifications

  • Ball Material:
    Steel
  • Ball Outside Diameter:
    1 Inch / 25.4 Millimeter
  • Base to Ball Height:
    1.89 Inch / 48 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578048072
  • Fitting Type:
    Tolerance Ring / Spring Loaded
  • Flange Size if applicable:
    Not Applicable
  • Housing Diameter:
    1.594 Inch / 40.5 Millimeter
  • Housing Height:
    1.831 Inch / 46.5 Millimeter
  • Housing Material:
    Steel
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; Tolerance Ring|Spring Loaded; 25.4MM Ball Diameter; Steel Ball; 220 Lbs Max Load; 48MM Base to Ball Height; 40.5MM Housing Diameter; 46.5MM Housing Height; Steel Housing
  • Manufacturer Name:
    SKF
  • Maximum Load:
    220 Lbs
  • Other Features:
    Die Lifter / Shock Loading Protection / Zinc Plated Housing
  • Overall Height:
    1.89 Inch / 48 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0 Inch / 0 Millimeter
  • Stud Thread Length:
    0 Inch / 0 Millimeter
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.319
