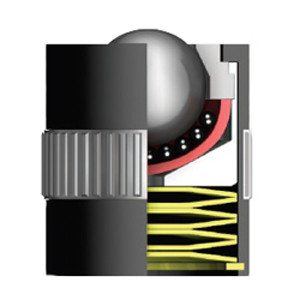

SKF DL 30-13 Ball Transfer Unit

  • SKUMM67PV
  • BrandSKF
  • Manufacturer Part #DL 30-13
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$134.84

SKF DL 30-13 Ball Transfer Unit Specifications

  • Ball Material:
    Steel
  • Ball Outside Diameter:
    0.622 Inch / 15.8 Millimeter
  • Base to Ball Height:
    1.417 Inch / 36 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578047853
  • Fitting Type:
    Tolerance Ring / Spring Loaded
  • Flange Size if applicable:
    Not Applicable
  • Housing Diameter:
    1.201 Inch / 30.5 Millimeter
  • Housing Height:
    1.358 Inch / 34.5 Millimeter
  • Housing Material:
    Steel
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; Tolerance Ring|Spring Loaded; 15.8MM Ball Diameter; Steel Ball; 132 Lbs Max Load; 36MM Base to Ball Height; 30.5MM Housing Diameter; 34.5MM Housing Height; Steel Housing
  • Manufacturer Name:
    SKF
  • Maximum Load:
    132 Lbs
  • Other Features:
    Die Lifter / Shock Loading Protection / Zinc Plated Housing
  • Overall Height:
    1.417 Inch / 36 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0 Inch / 0 Millimeter
  • Stud Thread Length:
    0 Inch / 0 Millimeter
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.127
