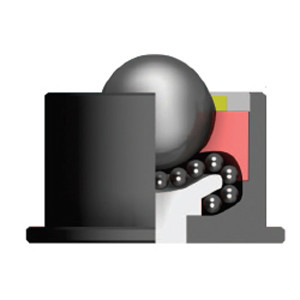

SKF BT 7103 Ball Transfer Unit

  • SKUAX39IH
  • Brand
  • Manufacturer Part #BT 7103
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$74.04

SKF BT 7103 Ball Transfer Unit Specifications

  • Ball Outside Diameter:
    0.5 Inch / 12.7 Millimeter
  • Base to Ball Height:
    0.89 Inch / 22.6 Millimeter
  • Bolt Size:
    3.6 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578001541
  • Fitting Type:
    4 Hole Square Bottom Flange
  • Flange Size if applicable:
    44.5 X 44.5 MM
  • Housing Diameter:
    0.937 Inch / 23.8 Millimeter
  • Housing Height:
    0.752 Inch / 19.1 Millimeter
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; 4 Hole Square Bottom Flange; 12.7MM Ball Diameter; 44.5 X 44.5 MM Flange Size; 22.6MM Base to Ball Height; 23.8MM Housing Diameter; 19.1MM Housing Height
  • Manufacturer Name:
    SKF
  • Other Features:
    High Capacity / Optional Drain Hole and Grease Point / Drill Hole Fixing
  • Overall Height:
    0.89 Inch / 22.6 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0 Inch / 0 Millimeter
  • Stud Thread Length:
    0 Inch / 0 Millimeter
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.086
