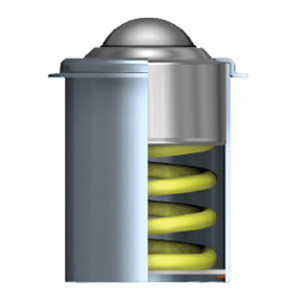

SKF BT 3010-13 Ball Transfer Unit

  • SKUYU93JE
  • BrandSKF
  • Manufacturer Part #BT 3010-13
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$97.69

SKF BT 3010-13 Ball Transfer Unit Specifications

  • Ball Material:
    Steel
  • Ball Outside Diameter:
    0.748 Inch / 19 Millimeter
  • Base to Ball Height:
    2.48 Inch / 63 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578001107
  • Fitting Type:
    Press Fit / Spring Loaded
  • Flange Size if applicable:
    45 MM Dia
  • Housing Diameter:
    1.437 Inch / 36.5 Millimeter
  • Housing Height:
    2.343 Inch / 59.5 Millimeter
  • Housing Material:
    Steel
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; Press Fit|Spring Loaded; 19MM Ball Diameter; Steel Ball; 22 Lbs Max Load; 45 MM Dia Flange Size; 63MM Base to Ball Height; 36.5MM Housing Diameter; 59.5MM Housing Height; Steel Housing
  • Manufacturer Name:
    SKF
  • Maximum Load:
    22 Lbs
  • Other Features:
    Low Profile / Small Top Flange / Felt or Foam Seal / Zinc Plated Housing
  • Overall Height:
    2.48 Inch / 63 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0 Inch / 0 Millimeter
  • Stud Thread Length:
    0 Inch / 0 Millimeter
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.299
