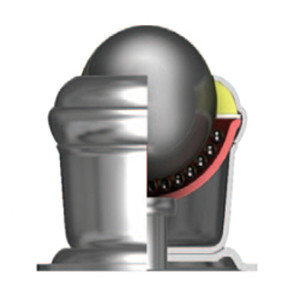

SKF BT 2011-13 Ball Transfer Unit

  • SKUXW38ND
  • Brand
  • Manufacturer Part #BT 2011-13
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$52.17

SKF BT 2011-13 Ball Transfer Unit Specifications

  • Ball Material:
    Steel
  • Ball Outside Diameter:
    1.563 Inch / 39.7 Millimeter
  • Base to Ball Height:
    1.811 Inch / 46 Millimeter
  • Bolt Size:
    7 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578000872
  • Fitting Type:
    3 Hole Round Flange
  • Flange Size if applicable:
    89 MM Dia
  • Housing Diameter:
    2.189 Inch / 55.6 Millimeter
  • Housing Height:
    1.469 Inch / 37.3 Millimeter
  • Housing Material:
    Steel
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; 3 Hole Round Flange; 39.7MM Ball Diameter; Steel Ball; Ball Up 308|Ball Down 132 Lbs Max Load; 89 MM Dia Flange Size; 46MM Base to Ball Height; 55.6MM Housing Diameter; 37.3MM Housing Height; Steel Housing
  • Manufacturer Name:
    SKF
  • Maximum Load:
    Ball Up 308 / Ball Down 132 Lbs
  • Other Features:
    General Purpose / Low Profile / Dirt Exit Hole / Zinc Plated Housing
  • Overall Height:
    1.811 Inch / 46 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0 Inch / 0 Millimeter
  • Stud Thread Length:
    0 Inch / 0 Millimeter
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.52
