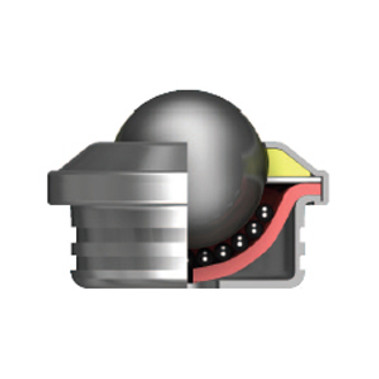

SKF BT 1004-13 Ball Transfer Unit

Images may not be exact. Please refer to Part # and Description.

Quantity:

$12.65

SKF BT 1004-13 Ball Transfer Unit Specifications

Ball Material:

Steel
Ball Outside Diameter:

1 Inch / 25.4 Millimeter
Base to Ball Height:

1.224 Inch / 31.1 Millimeter
Brand:

SKF
Category:

Ball Transfer Unit
EAN:

7316578000100
Fitting Type:

Press Fit
Flange Size if applicable:

45.2 MM Dia
Housing Diameter:

1.374 Inch / 34.9 Millimeter
Housing Height:

0.913 Inch / 23.2 Millimeter
Housing Material:

Steel
Inch - Metric:

Metric
Long Description:

Ball Transfer Unit; Press Fit; 25.4MM Ball Diameter; Steel Ball; Ball Up 121|Ball Down 55 Lbs Max Load; 45.2 MM Dia Flange Size; 31.1MM Base to Ball Height; 34.9MM Housing Diameter; 23.2MM Housing Height; Steel Housing
Manufacturer Name:

SKF
Maximum Load:

Ball Up 121 / Ball Down 55 Lbs
Other Features:

With Circlip / Dirt Exit Hole / Zinc Plated Housing
Overall Height:

1.224 Inch / 31.1 Millimeter
Product Name:

Ball Transfer Unit
Stud Height if applicable:

0 Inch / 0 Millimeter
Stud Thread Length:

0 Inch / 0 Millimeter
UNSPSC:

24101700
Weight / Kilogram:

0.14
