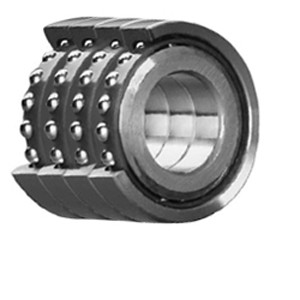

SKF BSD 2562 C/QFCB Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF BSD 2562 C/QFCB Precision Ball Bearing Specifications
-
Bore:0.984 Inch / 25 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Precision Ball Bearings
-
Contact Angle:62 Degree
-
EAN:7316572027639
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Angular Contact Ball
-
Long Description:25MM Bore; 62MM Outside Diameter; 60MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 4 (1 Quadruplex Set) Bearings; 62 Degree Contact Angle; Polyamide Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:BSD 2562 C/QFCB
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Quadruplex-Tandem and Face to Face
-
Noun:Bearing
-
Number of Bearings:4 (1 Quadruplex Set)
-
Other Features:Single Row / Angular Contact Thrust Bearing / Super Precision / Single Direction / Modified Internal Design
-
Outside Diameter:2.441 Inch / 62 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Medium
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.977
-
Weight / LBS:2.154
-
Width:2.362 Inch / 60 Millimeter
