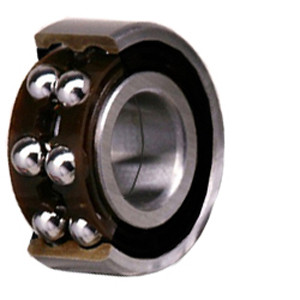

SKF BEAS 008032-2RS Miniature Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF BEAS 008032-2RS Miniature Precision Ball Bearing Specifications
-
Bore:0.315 Inch / 8 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Miniature Precision Ball Bearings
-
Contact Angle:60 Degree
-
EAN:7316572814253
-
Enclosure Type:Contact Seal
-
Enclosure:2 Seals
-
Flange Outside Diameter:0 Inch / 0 Millimeter
-
Flanges:No
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Inner Race Width:0.787 Inch / 20 Millimeter
-
Keyword String:Angular Contact Ball
-
Long Description:8MM Bore; 32MM Outside Diameter; 20MM Inner Race Width; 20MM Outer Race Width; 2 Seals Enclosure; ABEC 7 / ISO P4 Precision; No Flange; Steel Ball Material; Steel Race Material; 1 (Single) Bearing
-
Manufacturer Item Number:BEAS 008032-2RS
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Double Row / Angular Contact Thrust Bearing / Super Precision / Double Direction / For Screw Drive
-
Outer Race Width:0.787 Inch / 20 Millimeter
-
Outside Diameter:1.26 Inch / 32 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:None
-
Race Material:Steel
-
Raceway Style:2 Rib Inner Ring and 1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.1
-
Weight / LBS:0.221
