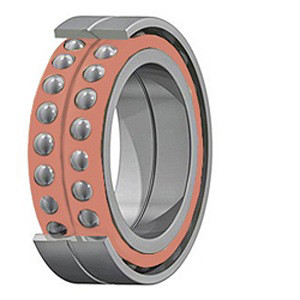

SKF 7224 ACD/P4ADGA Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 7224 ACD/P4ADGA Precision Ball Bearing Specifications
-
Bore:4.724 Inch / 120 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:25 Degree
-
EAN:7316571794532
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:120MM Bore; 215MM Outside Diameter; 80MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 25 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:7224 ACD/P4ADGA
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Duplex-Universal
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / Super Precision / High Capacity Basic Design
-
Outside Diameter:8.465 Inch / 215 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Extra Light
-
Raceway Style:1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:11.14
-
Weight / LBS:24.582
-
Width:3.15 Inch / 80 Millimeter
