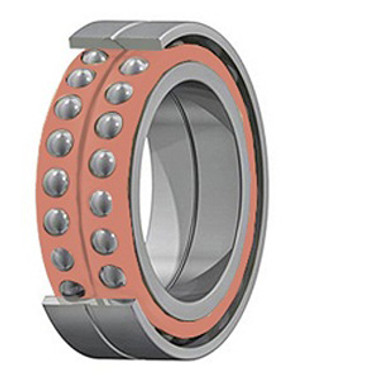

SKF 71919 CD/P4ADGA Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 71919 CD/P4ADGA Precision Ball Bearing Specifications
-
Bore:3.74 Inch / 95 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:15 Degree
-
EAN:7316577310231
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Angular Contact Ball
-
Long Description:95MM Bore; 130MM Outside Diameter; 36MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:71919 CD/P4ADGA
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Duplex-Universal
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / High Precision
-
Outside Diameter:5.118 Inch / 130 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Light
-
Raceway Style:1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:1.31
-
Weight / LBS:2.888
-
Width:1.417 Inch / 36 Millimeter
