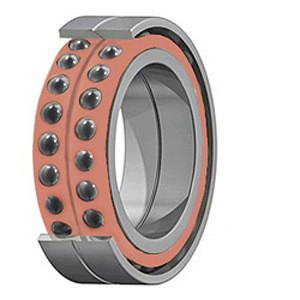

SKF 71903 CE/HCPA9AHDT Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 71903 CE/HCPA9AHDT Precision Ball Bearing Specifications
-
Bore:0.669 Inch / 17 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:15 Degree
-
EAN:7316576871702
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:17MM Bore; 30MM Outside Diameter; 14MM Width; Open Enclosure; ABEC 9 / ISO P2 Precision; Ceramic Ball Material; 2 (1 Pair) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Inner Ring and Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:71903 CE/HCPA9AHDT
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Ceramic
-
Mounting Arrangement:Duplex-Tandem
-
Noun:Bearing
-
Number of Bearings:2 (1 Pair)
-
Other Features:Single Row / Angular Contact / High Speed E Design / Two Lubrication Holes On The Non-Thrust Side Of The Outer Ring
-
Outside Diameter:1.181 Inch / 30 Millimeter
-
Precision Class:ABEC 9 / ISO P2
-
Preload:None
-
Raceway Style:1 Rib Inner Ring and Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.04
-
Weight / LBS:0.09
-
Width:0.551 Inch / 14 Millimeter
