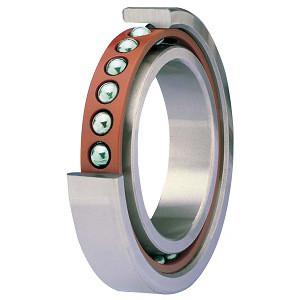

SKF 7024 CDGA/P4A Precision Ball Bearing

MFG Part #
7024 CDGA/P4A
SKU#
QV64JM

Specifications

Bore4.724 Inch / 120 Millimeter
BrandSKF
Cage MaterialPhenolic
CategoryPrecision Ball Bearings
Contact Angle15 Degree
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bore:
4.724 Inch / 120 Millimeter
Brand:
SKF
Cage Material:
Phenolic
Category:
Precision Ball Bearings
Contact Angle:
15 Degree
EAN:
7316570853865
Enclosure:
Open
Flush Ground:
Yes
Harmonized Tariff Code:
8482.10.50.28
Inch - Metric:
Metric
Keyword String:
Angular Contact Ball
Long Description:
120MM Bore; 180MM Outside Diameter; 28MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 1 (Single) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
Manufacturer Item Number:
7024 CDGA/P4A
Manufacturer Name:
SKF
Manufacturer URL:
http://www.skf.com"
Material - Ball:
Steel
Mounting Arrangement:
Universal
Noun:
Bearing
Number of Bearings:
1 (Single)
Other Features:
Single Row / Angular Contact / High Precision
Outside Diameter:
7.087 Inch / 180 Millimeter
Precision Class:
ABEC 7 / ISO P4
Preload:
Light
Raceway Style:
1 Rib Outer Ring
Rolling Element:
Ball Bearing
UNSPSC:
31171531
Weight / Kilogram:
2.242
Weight / LBS:
4.938
Width:
1.102 Inch / 28 Millimeter
$2,609.86
