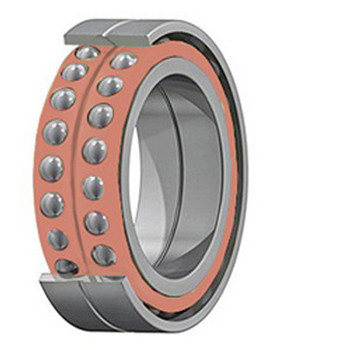

SKF 7022 CD/HCP4ADGA Precision Ball Bearing

Images may not be exact. Please refer to Part # and Description.

Quantity:

$3,871.42

SKF 7022 CD/HCP4ADGA Precision Ball Bearing Specifications

Bore:

4.331 Inch / 110 Millimeter
Brand:

SKF
Cage Material:

Phenolic
Category:

Precision Ball Bearings
Contact Angle:

15 Degree
Enclosure:

Open
Flush Ground:

Yes
Harmonized Tariff Code:

8482.10.50.28
Inch - Metric:

Metric
Keyword String:

Angular Contact Ball
Long Description:

110MM Bore; 170MM Outside Diameter; 56MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Ceramic Ball Material; 2 (1 Pair) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
Manufacturer Item Number:

7022 CD/HCP4ADGA
Manufacturer Name:

SKF
Manufacturer URL:

http://www.skf.com"
Material - Ball:

Ceramic
Mounting Arrangement:

Duplex-Universal
Noun:

Bearing
Number of Bearings:

2 (1 Pair)
Other Features:

Single Row / Angular Contact / High Precision / Hybrid / Corrosion Resistant Ball
Outside Diameter:

6.693 Inch / 170 Millimeter
Precision Class:

ABEC 7 / ISO P4
Preload:

Light
Raceway Style:

1 Rib Outer Ring
Rolling Element:

Ball Bearing
UNSPSC:

31171531
Weight / Kilogram:

3.5
Weight / LBS:

7.716
Width:

2.205 Inch / 56 Millimeter
