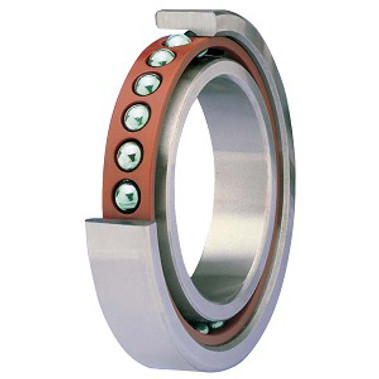

SKF 7017 CD/P4A Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 7017 CD/P4A Precision Ball Bearing Specifications
-
Bore:3.346 Inch / 85 Millimeter
-
Brand:SKF
-
Cage Material:Phenolic
-
Category:Precision Ball Bearings
-
Contact Angle:15 Degree
-
EAN:7316570767780
-
Enclosure:Open
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Angular Contact Ball
-
Long Description:85MM Bore; 130MM Outside Diameter; 22MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 1 (Single) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:7017 CD/P4A
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Single Row / Angular Contact / High Precision
-
Outside Diameter:5.118 Inch / 130 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:None
-
Raceway Style:1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:0.93
-
Weight / LBS:2.037
-
Width:0.866 Inch / 22 Millimeter
