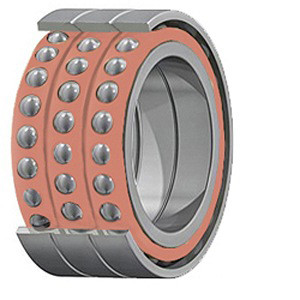

SKF 7017 ACD/P4ATBTC Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 7017 ACD/P4ATBTC Precision Ball Bearing Specifications
-
Bore:3.346 Inch / 85 Millimeter
-
Brand:SKF
-
Cage Material:PEEK Resin
-
Category:Precision Ball Bearings
-
Contact Angle:25 Degree
-
EAN:7316570882742
-
Enclosure:Open
-
Flush Ground:Yes
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Keyword String:Ball Angular Contact
-
Long Description:85MM Bore; 130MM Outside Diameter; 66MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 3 (1 Triplex Set) Bearings; 25 Degree Contact Angle; PEEK Resin Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
-
Manufacturer Item Number:7017 ACD/P4ATBTC
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Steel
-
Mounting Arrangement:Triplex-Tandem and Back to Back
-
Noun:Bearing
-
Number of Bearings:3 (1 Triplex Set)
-
Other Features:Single Row / Angular Contact / High Capacity Basic Design
-
Outside Diameter:5.118 Inch / 130 Millimeter
-
Precision Class:ABEC 7 / ISO P4
-
Preload:Medium
-
Raceway Style:1 Rib Outer Ring
-
Rolling Element:Ball Bearing
-
UNSPSC:31171531
-
Weight / Kilogram:2.77
-
Weight / LBS:6.113
-
Width:2.598 Inch / 66 Millimeter
