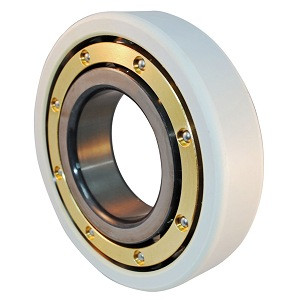

SKF 6316 M/C4VL0241 Single Row Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 6316 M/C4VL0241 Single Row Ball Bearing Specifications
-
Bore:3.15 Inch / 80 Millimeter
-
Brand:SKF
-
Cage Material:Brass
-
Category:Single Row Ball Bearings
-
EAN:7316571429069
-
Enclosure:Open
-
Harmonized Tariff Code:8482.10.50.68
-
Inch - Metric:Metric
-
Inner Race Width:0 Inch / 0 Millimeter
-
Internal Clearance:C4-Extra Loose
-
Internal Special Features:Electrical Insulation on Outer Ring
-
Keyword String:Ball
-
Long Description:80MM Bore; 170MM Outside Diameter; 39MM Outer Race Width; Open; Ball Bearing; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; Electrical Insulation on Outer Ring Internal Special Features; C4-Extra Loose Internal Clearance; Brass Cage
-
Manufacturer Item Number:6316 M/C4VL0241
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Maximum Capacity / Filling Slot:No
-
Noun:Bearing
-
Other Features:Deep Groove / VL0241 Aluminum Oxide Coated External Surfaces
-
Outer Race Width:1.535 Inch / 39 Millimeter
-
Outside Diameter:6.693 Inch / 170 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
Snap Ring:No
-
UNSPSC:31171504
-
Weight / Kilogram:4.434
-
Weight / LBS:9.266
