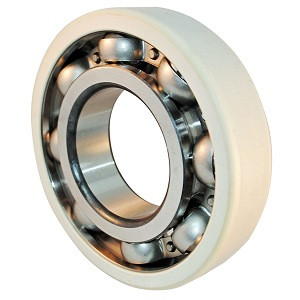

SKF 6309/C4S0VL0241 Single Row Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 6309/C4S0VL0241 Single Row Ball Bearing Specifications
-
Bore:1.772 Inch / 45 Millimeter
-
Brand:SKF
-
Cage Material:Steel
-
Category:Single Row Ball Bearings
-
EAN:7316576861345
-
Enclosure:Open
-
Harmonized Tariff Code:8482.10.50.68
-
Inch - Metric:Metric
-
Internal Clearance:C4-Extra Loose
-
Internal Special Features:Electrical Insulation on Outer Ring
-
Keyword String:Ball
-
Long Description:45MM Bore; 100MM Outside Diameter; 25MM Outer Race Width; Open; Ball Bearing; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; Electrical Insulation on Outer Ring Internal Special Features; C4-Extra Loose Internal Clearance; Steel Cage
-
Manufacturer Item Number:6309/C4S0VL0241
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Maximum Capacity / Filling Slot:No
-
Noun:Bearing
-
Other Features:Deep Groove / VL0241 Aluminum Oxide Coated External Surfaces
-
Outer Race Width:0.984 Inch / 25 Millimeter
-
Outside Diameter:3.937 Inch / 100 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
Snap Ring:No
-
UNSPSC:31171504
-
Weight / Kilogram:0.85
-
Weight / LBS:0.84
