SKF

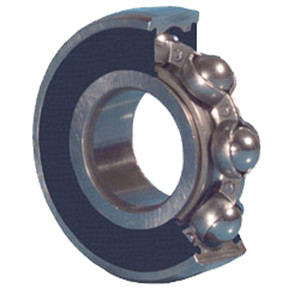

SKF 6309-2RS2/C3WT Single Row Ball Bearing

MFG Part #
6309-2RS2/C3WT
SKU#
HM37GJ

Specifications

Bore1.772 Inch / 45 Millimeter
BrandSKF
Cage MaterialSteel
CategorySingle Row Ball Bearings
EAN7316576156861
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bore:
1.772 Inch / 45 Millimeter
Brand:
SKF
Cage Material:
Steel
Category:
Single Row Ball Bearings
EAN:
7316576156861
Enclosure Type:
Contact Seal
Enclosure:
2 Seals
Harmonized Tariff Code:
8482.10.50.68
Inch - Metric:
Metric
Internal Clearance:
C3-Loose
Internal Special Features:
No
Keyword String:
Ball
Long Description:
45MM Bore; 100MM Outside Diameter; 25MM Outer Race Width; 2 Seals; Ball Bearing; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features; C3-Loose Internal Clearance; Steel Cage; Contact Seal Enclosure
Manufacturer Item Number:
6309-2RS2/C3WT
Manufacturer Name:
SKF
Manufacturer URL:
http://www.skf.com"
Maximum Capacity / Filling Slot:
No
Noun:
Bearing
Other Features:
Deep Groove / FKM Seal / WT Wide Temperature Grease
Outer Race Width:
0.984 Inch / 25 Millimeter
Outside Diameter:
3.937 Inch / 100 Millimeter
Precision Class:
ABEC 1 / ISO P0
Rolling Element:
Ball Bearing
Snap Ring:
No
UNSPSC:
31171504
Weight / Kilogram:
0.87
Weight / LBS:
1.9202
$119.19
