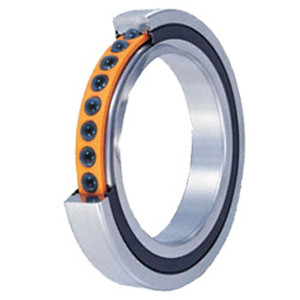

SKF 625-2RZTN9/HC5C3WTF1 Miniature Precision Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 625-2RZTN9/HC5C3WTF1 Miniature Precision Ball Bearing Specifications
-
Bore:0.197 Inch / 5 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Miniature Precision Ball Bearings
-
Contact Angle:0 Degree
-
EAN:7316571244402
-
Enclosure Type:Non Contact Seal
-
Enclosure:2 Seals
-
Flange Outside Diameter:0 Inch / 0 Millimeter
-
Flanges:No
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.68
-
Inch - Metric:Metric
-
Inner Race Width:0.197 Inch / 5 Millimeter
-
Keyword String:Deep Groove Ball
-
Long Description:5MM Bore; 16MM Outside Diameter; 5MM Inner Race Width; 5MM Outer Race Width; 2 Seals Enclosure; ABEC 5 / ISO P5 Precision; No Flange; Ceramic Ball Material; Steel Race Material; 1 (Single) Bearing
-
Manufacturer Item Number:625-2RZTN9/HC5C3WTF1
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Material - Ball:Ceramic
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Other Features:Single Row / Deep Groove / Hybrid / Corrosion Resistant Ball / Grease with Polyurea Thickener / C3 Clearance
-
Outer Race Width:0.197 Inch / 5 Millimeter
-
Outside Diameter:0.63 Inch / 16 Millimeter
-
Precision Class:ABEC 5 / ISO P5
-
Preload:None
-
Race Material:Steel
-
Raceway Style:Not Applicable
-
Rolling Element:Ball Bearing
-
UNSPSC:31171504
-
Weight / Kilogram:0.005
-
Weight / LBS:0.016
