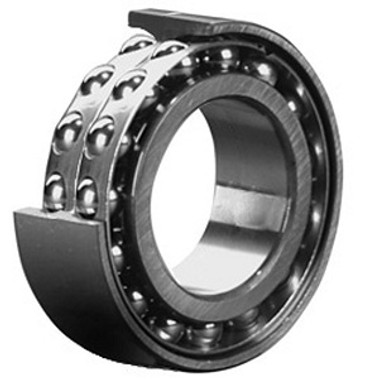

SKF 3315 E/C3 Angular Contact Ball Bearing

Images may not be exact. Please refer to Part # and Description.

Quantity:

$646.42

SKF 3315 E/C3 Angular Contact Ball Bearing Specifications

Bore:

2.953 Inch / 75 Millimeter
Brand:

SKF
Cage Material:

Steel
Category:

Angular Contact Ball Bearings
Contact Angle:

30 Degree
EAN:

7316573933656
Enclosure:

Open
Flush Ground:

No
Harmonized Tariff Code:

8482.10.50.28
Inch - Metric:

Metric
Internal Clearance:

C3-Loose
Keyword String:

Angular Contact
Long Description:

75MM Bore; 160MM Outside Diameter; 68.3MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; C3-Loose; Steel Cage; 30 Degree; 1 (Single)
Manufacturer Item Number:

3315 E/C3
Manufacturer Name:

SKF
Manufacturer URL:

http://www.skf.com"
Maximum Capacity / Filling Slot:

No
Noun:

Bearing
Number of Bearings:

1 (Single)
Number of Rows of Balls:

Double Row
Outside Diameter:

6.299 Inch / 160 Millimeter
Precision Class:

ABEC 1 / ISO P0
Rolling Element:

Ball Bearing
Snap Ring:

No
UNSPSC:

31171531
Weight / Kilogram:

5.732
Weight / LBS:

12.6258
Width:

2.689 Inch / 68.3 Millimeter
