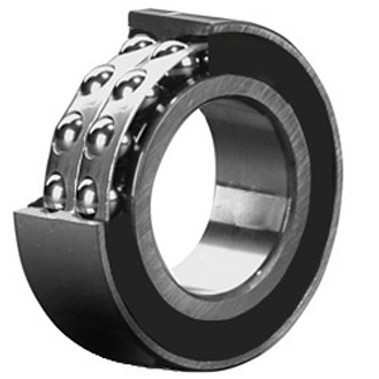

SKF 3309 A-2RS1/C3MT33 Angular Contact Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 3309 A-2RS1/C3MT33 Angular Contact Ball Bearing Specifications
-
Bore:1.772 Inch / 45 Millimeter
-
Brand:SKF
-
Cage Material:Steel
-
Category:Angular Contact Ball Bearings
-
Contact Angle:30 Degree
-
EAN:7316571510729
-
Enclosure:2 Seals
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Internal Clearance:C3-Loose
-
Keyword String:Angular Contact
-
Long Description:45MM Bore; 100MM Outside Diameter; 39.69MM Width; 2 Seals; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; C3-Loose; Steel Cage; 30 Degree; 1 (Single)
-
Manufacturer Item Number:3309 A-2RS1/C3MT33
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Maximum Capacity / Filling Slot:No
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Number of Rows of Balls:Double Row
-
Other Features:NBR Contact Seal / MT33-Lithium Soap Thickener Grease
-
Outside Diameter:3.937 Inch / 100 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
Snap Ring:No
-
UNSPSC:31171531
-
Weight / Kilogram:1.321
-
Weight / LBS:2.91
-
Width:1.563 Inch / 39.69 Millimeter
