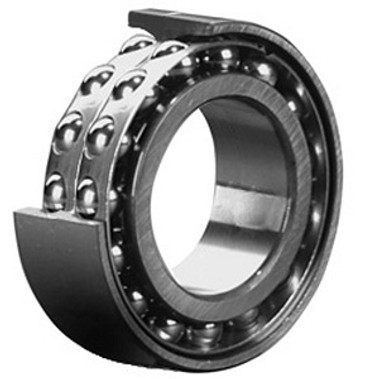

SKF 3218 A/C3W64 Angular Contact Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 3218 A/C3W64 Angular Contact Ball Bearing Specifications
-
Bore:3.543 Inch / 90 Millimeter
-
Brand:SKF
-
Cage Material:Steel
-
Category:Angular Contact Ball Bearings
-
Contact Angle:30 Degree
-
EAN:7316575230166
-
Enclosure:Open
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Internal Clearance:C3-Loose
-
Keyword String:Angular Contact
-
Long Description:90MM Bore; 160MM Outside Diameter; 52.4MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 / ISO P0; No Filling Slot; No Snap Ring; C3-Loose; Steel Cage; 30 Degree; 1 (Single)
-
Manufacturer Item Number:3218 A/C3W64
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Maximum Capacity / Filling Slot:No
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Number of Rows of Balls:Double Row
-
Other Features:W64-Standard Synthetic Grease
-
Outside Diameter:6.299 Inch / 160 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
Snap Ring:No
-
UNSPSC:31171531
-
Weight / Kilogram:3.81
-
Weight / LBS:8.411
-
Width:2.063 Inch / 52.4 Millimeter
