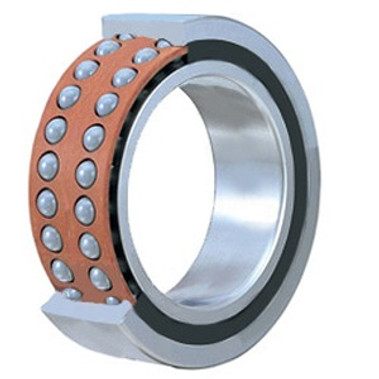

SKF 3202 A-2RS1TN9 Angular Contact Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 3202 A-2RS1TN9 Angular Contact Ball Bearing Specifications
-
Bore:0.591 Inch / 15 Millimeter
-
Brand:SKF
-
Cage Material:Polymer
-
Category:Angular Contact Ball Bearings
-
Contact Angle:24 Degree
-
EAN:7316571112022
-
Enclosure:2 Seals
-
Flush Ground:No
-
Harmonized Tariff Code:8482.10.50.28
-
Inch - Metric:Metric
-
Internal Clearance:C0-Medium
-
Keyword String:Angular Contact
-
Long Description:15MM Bore; 35MM Outside Diameter; 15.9MM Width; 2 Seals; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 3 / ISO P6; No Filling Slot; No Snap Ring
-
Manufacturer Item Number:5202 A-2RS1TN9
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Maximum Capacity / Filling Slot:No
-
Noun:Bearing
-
Number of Bearings:1 (Single)
-
Number of Rows of Balls:Double Row
-
Outside Diameter:1.378 Inch / 35 Millimeter
-
Precision Class:ABEC 3 / ISO P6
-
Rolling Element:Ball Bearing
-
Snap Ring:No
-
UNSPSC:31171531
-
Weight / Kilogram:0.072
-
Weight / LBS:0.146
-
Width:0.626 Inch / 15.9 Millimeter
