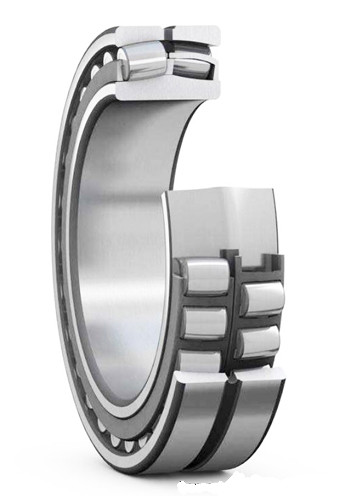

SKF 239/750 CAK/C08W507

  • SKUPY62DS
  • Brand
  • Manufacturer Part #239/750 CAK/C08W507
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$94,613.35

SKF 239/750 CAK/C08W507 Specifications

  • Bearing Material:
    Steel
  • Bore Diameter:
    750 mm
  • Bore Type:
    Tapered 1:12
  • Cage Material:
    Brass
  • Cage Type:
    Inner Ring Guided
  • Closure Type:
    Open
  • Dynamic Load Capacity:
    6000 kN
  • Fillet Radius:
    5 mm
  • Finish/Coating:
    Uncoated
  • Internal Clearance:
    C083
  • Lubrication Hole Type:
    Lubrication Groove & Hole
  • Maximum RPM:
    560 RPM
  • Operating Temperature Range:
    Maximum of +390°F
  • Outer Ring Type:
    Not Split
  • Outer Ring Width:
    185 mm
  • Outside Diameter:
    1000 mm
  • Overall Width:
    185 mm
  • Precision Rating:
    Not Rated
  • Series:
    239
  • Static Load Capacity:
    13200 kN
  • Weight:
    1078.06 lbs
