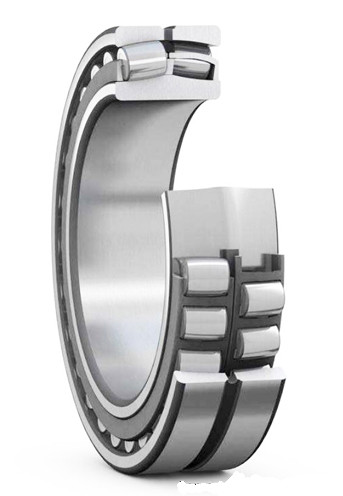

SKF 23284 CAK/C083W507

  • SKUVW59MN
  • Brand
  • Manufacturer Part #23284 CAK/C083W507
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$55,089.97

SKF 23284 CAK/C083W507 Specifications

  • Bearing Material:
    Steel
  • Bore Diameter:
    420 mm
  • Bore Type:
    Tapered 1:12
  • Cage Material:
    Brass
  • Cage Type:
    Inner Ring Guided
  • Closure Type:
    Open
  • Dynamic Load Capacity:
    7350 kN
  • Fillet Radius:
    6 mm
  • Finish/Coating:
    Uncoated
  • Internal Clearance:
    C3
  • Lubrication Hole Type:
    Lubrication Groove & Hole
  • Maximum RPM:
    630 RPM
  • Operating Temperature Range:
    Maximum of +390°F
  • Outer Ring Type:
    Not Split
  • Outer Ring Width:
    272 mm
  • Outside Diameter:
    760 mm
  • Overall Width:
    272 mm
  • Precision Rating:
    Not Rated
  • Series:
    232
  • Static Load Capacity:
    11600 kN
  • Weight:
    1245.39 lbs
