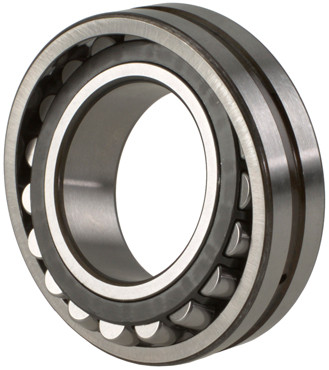

SKF 23222CCK/W33

  • SKUXP40SE
  • Brand
  • Manufacturer Part #23222 CCK/W33
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$891.11

SKF 23222CCK/W33 Specifications

  • Bearing Type:
    Radial
  • Bore Type:
    Tapered Bore
  • Cage Material:
    Steel
  • Cage Type:
    Sheet Metal
  • EAN or UPC:
    7316576657252
  • Enclosure:
    Unsealed
  • Fillet Radius:
    2 mm
  • Housing Fillet Radius [MAX]:
    2 mm
  • I.D.:
    110 mm
  • Inch/Metric:
    Metric
  • Limiting Speed - Oil:
    2000 rpm
  • Material:
    Steel
  • O.D.:
    200 mm
  • Origin:
    Spherical Radial
  • Package Quantity:
    1.0 Piece
  • Radial Internal Clearance Specification:
    Normal Clearance
  • Radial Internal Clearance:
    Group N
  • Relubrication Feature:
    With
  • Ring Modification:
    W33 - Lubrication Groove & 3 Holes in Outer Ring
  • Rows of Balls:
    Multi
  • Shaft Fillet Radius [MAX]:
    2 mm
  • Tolerance:
    Normal (PN)
  • Weight:
    20.463 LB
  • Width:
    69.8 mm
