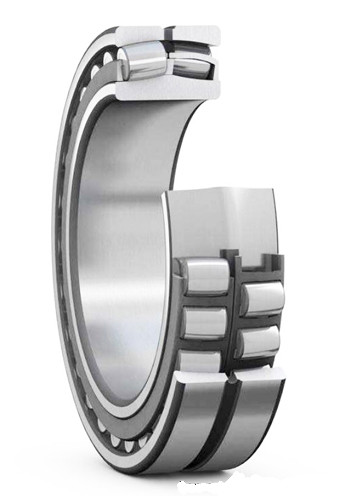

SKF 23132 CCK/W33

  • SKUCK50XA
  • Brand
  • Manufacturer Part #23132 CCK/W33
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$2,114.25

SKF 23132 CCK/W33 Specifications

  • Bearing Material:
    Steel
  • Bore Diameter:
    160 mm
  • Bore Type:
    Tapered 1:12
  • Cage Material:
    Steel
  • Cage Type:
    Inner Ring Guided
  • Closure Type:
    Open
  • Dynamic Load Capacity:
    980 kN
  • Fillet Radius:
    2 mm
  • Finish/Coating:
    Uncoated
  • Internal Clearance:
    C0
  • Lubrication Hole Type:
    Lubrication Groove & Hole
  • Maximum RPM:
    2400 RPM
  • Operating Temperature Range:
    Maximum of +390°F
  • Outer Ring Type:
    Not Split
  • Outer Ring Width:
    86 mm
  • Outside Diameter:
    270 mm
  • Overall Width:
    86 mm
  • Precision Rating:
    Not Rated
  • Series:
    231
  • Static Load Capacity:
    1370 kN
  • Weight:
    42.72 lbs
