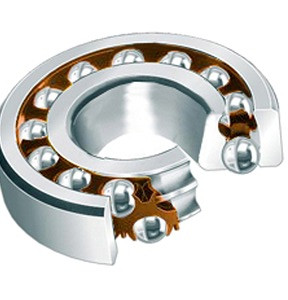

SKF 2309 EKTN9/C3 Self Aligning Ball Bearing
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
SKF 2309 EKTN9/C3 Self Aligning Ball Bearing Specifications
-
Adapter Sleeve:H-2309
-
Bore:1.772 Inch / 45 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Self Aligning Ball Bearings
-
EAN:7316576620843
-
Enclosure:Open
-
Harmonized Tariff Code:8482.10.50.68
-
Inch - Metric:Metric
-
Inner Race Width:1.417 Inch / 36 Millimeter
-
Internal Clearance:C3-Loose
-
Keyword String:Self Aligning
-
Long Description:45MM Bore; Tapered Adapter Mount; 100MM Outside Diameter; 36MM Inner Race Width; 36MM Outer Race Width; Open; Polyamide Cage; Double Row of Balls; ABEC 1 / ISO P0; C3-Loose
-
Manufacturer Item Number:2309 EKTN9/C3
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Mounting Method:Tapered Adapter
-
Noun:Bearing
-
Number of Rows of Balls:Double Row
-
Other Features:Allowable Misalignment 3 Deg / High Capacity Design / 1:12 Taper
-
Outer Race Width:1.417 Inch / 36 Millimeter
-
Outside Diameter:3.937 Inch / 100 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
UNSPSC:31171532
-
Weight / Kilogram:1.197
-
Weight / LBS:2.637
