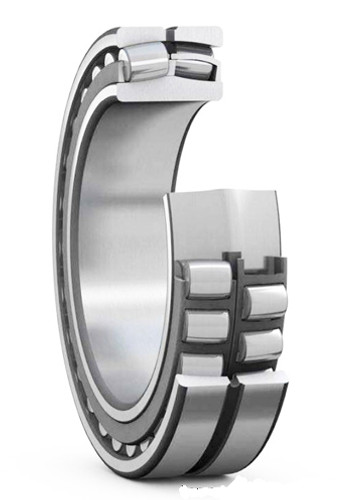

SKF 22211 E/C3

  • SKUMQ86EU
  • Brand
  • Manufacturer Part #22211 E/C3
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$194.61

SKF 22211 E/C3 Specifications

  • Bearing Material:
    Steel
  • Bore Diameter:
    55 mm
  • Bore Type:
    Straight
  • Cage Material:
    Steel
  • Cage Type:
    Inner Ring Guided
  • Closure Type:
    Open
  • Dynamic Load Capacity:
    125 kN
  • Fillet Radius:
    1.5 mm
  • Finish/Coating:
    Uncoated
  • Internal Clearance:
    C3
  • Lubrication Hole Type:
    Lubrication Groove & Hole
  • Maximum RPM:
    8500 RPM
  • Operating Temperature Range:
    Maximum of +390°F
  • Outer Ring Type:
    Not Split
  • Outer Ring Width:
    25 mm
  • Outside Diameter:
    100 mm
  • Overall Width:
    25 mm
  • Precision Rating:
    Not Rated
  • Series:
    222
  • Static Load Capacity:
    127 kN
  • Weight:
    1.87 lbs
