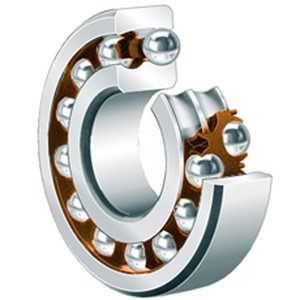

SKF 1312 ETN9/C3 Self Aligning Ball Bearing Specifications
-
Bore:2.362 Inch / 60 Millimeter
-
Brand:SKF
-
Cage Material:Polyamide
-
Category:Self Aligning Ball Bearings
-
EAN:7316576641510
-
Enclosure:Open
-
Harmonized Tariff Code:8482.10.50.68
-
Inch - Metric:Metric
-
Inner Race Width:1.22 Inch / 31 Millimeter
-
Internal Clearance:C3-Loose
-
Keyword String:Self Aligning
-
Long Description:60MM Bore; Shaft Mount; 130MM Outside Diameter; 31MM Inner Race Width; 31MM Outer Race Width; Open; Polyamide Cage; Double Row of Balls; ABEC 1 / ISO P0; C3-Loose
-
Manufacturer Item Number:1312 ETN9/C3
-
Manufacturer Name:SKF
-
Manufacturer URL:
-
Mounting Method:Shaft
-
Noun:Bearing
-
Number of Rows of Balls:Double Row
-
Other Features:Allowable Misalignment 3 Deg / High Capacity Design
-
Outer Race Width:1.22 Inch / 31 Millimeter
-
Outside Diameter:5.118 Inch / 130 Millimeter
-
Precision Class:ABEC 1 / ISO P0
-
Rolling Element:Ball Bearing
-
UNSPSC:31171532
-
Weight / Kilogram:1.98
-
Weight / LBS:4.365
