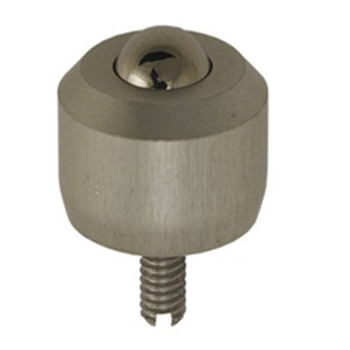

SKF 11MI-16-15 Ball Transfer Unit

  • SKUPR34IF
  • BrandSKF
  • Manufacturer Part #11MI-16-15
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$156.89

SKF 11MI-16-15 Ball Transfer Unit Specifications

  • Ball Material:
    Stainless Steel
  • Ball Outside Diameter:
    0.591 Inch / 15 Millimeter
  • Base to Ball Height:
    0.807 Inch / 20.5 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578059788
  • Fitting Type:
    Stud
  • Flange Size if applicable:
    Not Applicable
  • Housing Diameter:
    0.945 Inch / 24 Millimeter
  • Housing Height:
    0.65 Inch / 16.5 Millimeter
  • Housing Material:
    Stainless Steel
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; Stud; 15MM Ball Diameter; Stainless Steel Ball; 264 Lbs Max Load; 20.5MM Base to Ball Height; 24MM Housing Diameter; 16.5MM Housing Height; Stainless Steel Housing
  • Manufacturer Name:
    SKF
  • Maximum Load:
    264 Lbs
  • Other Features:
    Miniature
  • Overall Height:
    1.28 Inch / 32.5 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0.472 Inch / 12 Millimeter
  • Stud Thread Length:
    0.472 Inch / 12 Millimeter
  • Stud Thread Size:
    M6
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.049
