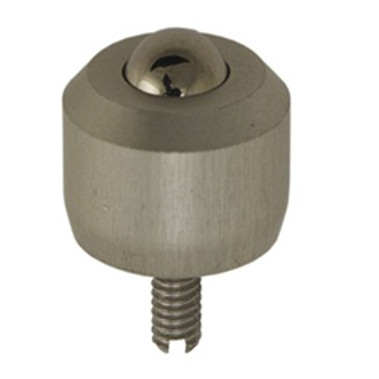

SKF 11MI-05-13 Ball Transfer Unit

  • SKUEM82JY
  • BrandSKF
  • Manufacturer Part #11MI-05-13
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$42.94

SKF 11MI-05-13 Ball Transfer Unit Specifications

  • Ball Material:
    Steel
  • Ball Outside Diameter:
    0.189 Inch / 4.8 Millimeter
  • Base to Ball Height:
    0.354 Inch / 9 Millimeter
  • Brand:
    SKF
  • Category:
    Ball Transfer Unit
  • EAN:
    7316578063785
  • Fitting Type:
    Stud
  • Flange Size if applicable:
    Not Applicable
  • Housing Diameter:
    0.512 Inch / 13 Millimeter
  • Housing Height:
    0.315 Inch / 8 Millimeter
  • Housing Material:
    Steel
  • Inch - Metric:
    Metric
  • Long Description:
    Ball Transfer Unit; Stud; 4.8MM Ball Diameter; Steel Ball; 44 Lbs Max Load; 9MM Base to Ball Height; 13MM Housing Diameter; 8MM Housing Height; Steel Housing
  • Manufacturer Name:
    SKF
  • Maximum Load:
    44 Lbs
  • Other Features:
    Miniature
  • Overall Height:
    0.945 Inch / 24 Millimeter
  • Product Name:
    Ball Transfer Unit
  • Stud Height if applicable:
    0.591 Inch / 15 Millimeter
  • Stud Thread Length:
    0.591 Inch / 15 Millimeter
  • Stud Thread Size:
    M6
  • UNSPSC:
    24101700
  • Weight / Kilogram:
    0.009
