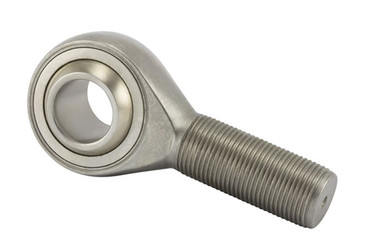

RBC Bearing SMLE2545

  • SKUFA18AE
  • Brand
  • Manufacturer Part #SMLE2545
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing SMLE2545 Specifications

  • Ball Diameter:
    42.85 mm
  • Ball Material:
    Stainless Steel
  • Ball Width:
    31 mm
  • Bore Diameter:
    25 mm
  • Head Diameter:
    56 mm
  • Head Width:
    22 mm
  • Housing Material:
    Stainless Steel, Hardened
  • Length to Ball Center:
    94 mm
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    248ºF
  • Misalignment Angle:
    15º
  • Operating Temperature Range:
    -22 to 248°F
  • Overall Height:
    122 mm
  • Race Material:
    Uniflon® Self Lubricating Fabric
  • Radial Static Load Capacity:
    7644 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    SMLE Series Self-Lubricating
  • Shank Thread Length:
    57 mm
  • Shank Thread Size:
    M24 x2
  • Thread Direction:
    Left Hand
  • Thread Type:
    Metric
  • Weight:
    1.28 lbs
