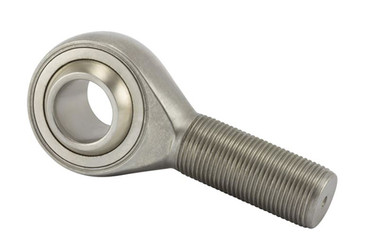

RBC Bearing SME1845

  • SKUEW72CY
  • Brand
  • Manufacturer Part #SME1845
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$966.72

RBC Bearing SME1845 Specifications

  • Ball Diameter:
    31.75 mm
  • Ball Material:
    Stainless Steel
  • Ball Width:
    23 mm
  • Bore Diameter:
    18 mm
  • Head Diameter:
    42 mm
  • Head Width:
    16.50 mm
  • Housing Material:
    Stainless Steel, Hardened
  • Length to Ball Center:
    72 mm
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    248ºF
  • Misalignment Angle:
    15º
  • Operating Temperature Range:
    -22 to 248°F
  • Overall Height:
    93 mm
  • Race Material:
    Uniflon® Self Lubricating Fabric
  • Radial Static Load Capacity:
    4519 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    SME Series Self-Lubricating
  • Shank Thread Length:
    44 mm
  • Shank Thread Size:
    M18 x1.5
  • Thread Direction:
    Right Hand
  • Thread Type:
    Metric
  • Weight:
    0.53 lbs
