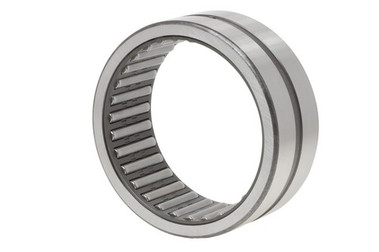

RBC Bearing SJ9688

  • SKULN20LC
  • Brand
  • Manufacturer Part #SJ9688
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$179.62

RBC Bearing SJ9688 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • EAN or UPC:
    637400017552
  • Enclosure:
    Open
  • End Type:
    Open End
  • Housing Bore - Press Fit [MAX]:
    4.9995 in
  • Housing Bore - Press Fit [MIN]:
    4.998 in
  • Housing Bore - Slip Fit [MAX]:
    5.0016 in
  • Housing Bore - Slip Fit [MIN]:
    5 in
  • Housing Shoulder Diameter:
    4.4375 in
  • I.D.:
    4 in
  • Inside Diameter Tolerance [MAX]:
    4.0024 in
  • Inside Diameter Tolerance [MIN]:
    4.0012 in
  • Limiting Speed - Oil:
    3300 rpm
  • O.D.:
    5 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    3.9986 in
  • Shaft Diameter - Press Fit [MIN]:
    3.9977 in
  • Shaft Diameter - Slip Fit [MAX]:
    4 in
  • Shaft Diameter - Slip Fit [MIN]:
    3.9991 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    3.19 LB
  • Width:
    2 in
