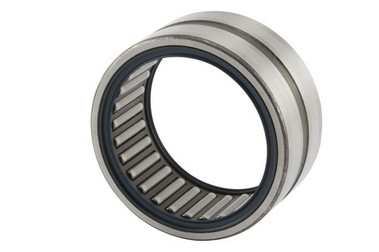

RBC Bearing SJ8477SS

  • SKULN17BJ
  • Brand
  • Manufacturer Part #SJ8477SS
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$117.96

RBC Bearing SJ8477SS Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • EAN or UPC:
    637400016906
  • Enclosure:
    Double Sealed
  • End Type:
    Open End
  • Housing Bore - Press Fit [MAX]:
    3.4996 in
  • Housing Bore - Press Fit [MIN]:
    3.4982 in
  • Housing Bore - Slip Fit [MAX]:
    3.5014 in
  • Housing Bore - Slip Fit [MIN]:
    3.5 in
  • Housing Shoulder Diameter:
    3.125 in
  • I.D.:
    2 3/4 in
  • Inside Diameter Tolerance [MAX]:
    2.7521 in
  • Inside Diameter Tolerance [MIN]:
    2.7511 in
  • Limiting Speed - Oil:
    1400 rpm
  • O.D.:
    3 1/2 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    2.7488 in
  • Shaft Diameter - Press Fit [MIN]:
    2.7481 in
  • Shaft Diameter - Slip Fit [MAX]:
    2.75 in
  • Shaft Diameter - Slip Fit [MIN]:
    2.7493 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    1.46 LB
  • Width:
    1 3/4 in
