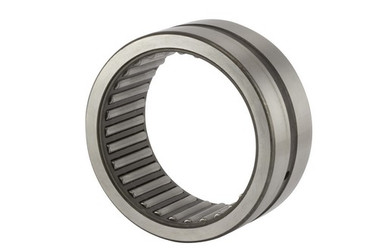

RBC Bearing SJ8447

  • SKUQN39VV
  • Brand
  • Manufacturer Part #SJ8447
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$76.65

RBC Bearing SJ8447 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • EAN or UPC:
    637400016678
  • Enclosure:
    Open
  • End Type:
    Open End
  • Housing Bore - Press Fit [MAX]:
    3.2496 in
  • Housing Bore - Press Fit [MIN]:
    3.2482 in
  • Housing Bore - Slip Fit [MAX]:
    3.2514 in
  • Housing Bore - Slip Fit [MIN]:
    3.25 in
  • Housing Shoulder Diameter:
    2.875 in
  • I.D.:
    2 1/2 in
  • Inside Diameter Tolerance [MAX]:
    2.5021 in
  • Inside Diameter Tolerance [MIN]:
    2.5011 in
  • Limiting Speed - Oil:
    5300 rpm
  • O.D.:
    3 1/4 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    2.4988 in
  • Shaft Diameter - Press Fit [MIN]:
    2.4981 in
  • Shaft Diameter - Slip Fit [MAX]:
    2.5 in
  • Shaft Diameter - Slip Fit [MIN]:
    2.4993 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    1.38 LB
  • Width:
    1 3/4 in
