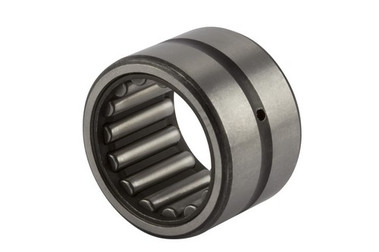

RBC Bearing SJ7193

  • SKUYC98VO
  • BrandRBC Bearings
  • Manufacturer Part #SJ7193
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$24.98

RBC Bearing SJ7193 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • EAN or UPC:
    637400014537
  • Enclosure:
    Open
  • End Type:
    Open End
  • Housing Bore - Press Fit [MAX]:
    1.4997 in
  • Housing Bore - Press Fit [MIN]:
    1.4987 in
  • Housing Bore - Slip Fit [MAX]:
    1.501 in
  • Housing Bore - Slip Fit [MIN]:
    1.5 in
  • Housing Shoulder Diameter:
    1.3125 in
  • I.D.:
    1 in
  • Inside Diameter Tolerance [MAX]:
    1.0018 in
  • Inside Diameter Tolerance [MIN]:
    1.0009 in
  • O.D.:
    1 1/2 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    0.9992 in
  • Shaft Diameter - Press Fit [MIN]:
    0.9987 in
  • Shaft Diameter - Slip Fit [MAX]:
    1 in
  • Shaft Diameter - Slip Fit [MIN]:
    0.9995 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.15 LB
  • Width:
    3/4 in
