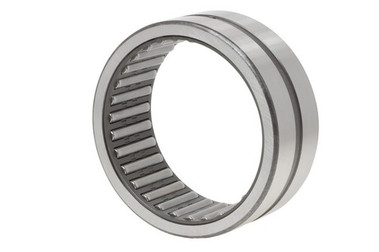

RBC Bearing SJ6849

  • SKUVX42FK
  • Brand
  • Manufacturer Part #SJ6849
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$383.12

RBC Bearing SJ6849 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • EAN or UPC:
    637400013899
  • Enclosure:
    Open
  • End Type:
    Open End
  • Housing Bore - Press Fit [MAX]:
    6.4995 in
  • Housing Bore - Press Fit [MIN]:
    6.498 in
  • Housing Bore - Slip Fit [MAX]:
    6.5016 in
  • Housing Bore - Slip Fit [MIN]:
    6.5 in
  • Housing Shoulder Diameter:
    5.625 in
  • I.D.:
    5 in
  • Inside Diameter Tolerance [MAX]:
    5.0027 in
  • Inside Diameter Tolerance [MIN]:
    5.0013 in
  • Limiting Speed - Oil:
    2700 rpm
  • O.D.:
    6 1/2 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    4.9983 in
  • Shaft Diameter - Press Fit [MIN]:
    4.9973 in
  • Shaft Diameter - Slip Fit [MAX]:
    5 in
  • Shaft Diameter - Slip Fit [MIN]:
    4.999 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    6.65 LB
  • Width:
    2 1/4 in
