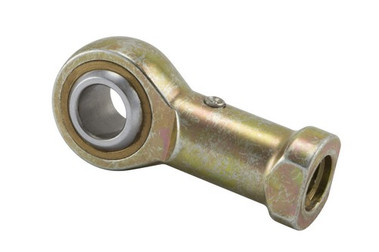

RBC Bearing SFLG1040

Images may not be exact. Please refer to Part # and Description.

Quantity:

$171.18

RBC Bearing SFLG1040 Specifications

Bearing Material:

Chrome Steel
Enclosure:

Open
Housing Material:

Carbon Steel
Inner Diameter:

10 mm
Inner Ring Width:

14 mm
Length To Center of Ball:

43 mm
Operating Temperature:

-22 to 248ºF
Outer Diameter:

26 mm
Outer Ring Width:

10.5 mm
Race Material:

Brass
Sphere Diameter:

19.05 mm
Tilt Angle:

14Âº
Type:

Female Spherical Plain Rod End, High Tensile Series, Left-Handed Thread, Metric
UPC Code:

637400196356
Width Across Wrench Flats:

16 mm
Width:

14 mm
