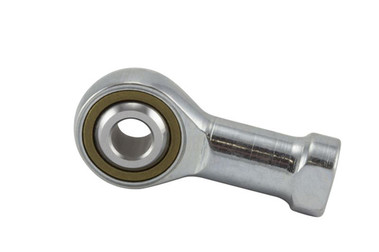

RBC Bearing SFLE6

  • SKUBB53ZW
  • Brand
  • Manufacturer Part #SFLE6
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing SFLE6 Specifications

  • Ball Diameter:
    12.70 mm
  • Ball Material:
    Chrome Steel
  • Ball Width:
    9 mm
  • Bore Diameter:
    6 mm
  • Head Diameter:
    18 mm
  • Head Width:
    6.75 mm
  • Housing Material:
    52100 Bearing Steel
  • Length to Ball Center:
    39 mm
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    248ºF
  • Misalignment Angle:
    13º
  • Operating Temperature Range:
    -22 to 248°F
  • Overall Height:
    48 mm
  • Race Material:
    Uniflon® Self Lubricating Fabric
  • Radial Static Load Capacity:
    1573.66 lbf
  • Rod End Type:
    Female Threaded
  • Series:
    SFLE Series Self-Lubricating
  • Shank Thread Length:
    13 mm
  • Shank Thread Size:
    M6 x1
  • Thread Direction:
    Left Hand
  • Thread Type:
    Metric
  • Weight:
    0.05 lbs
