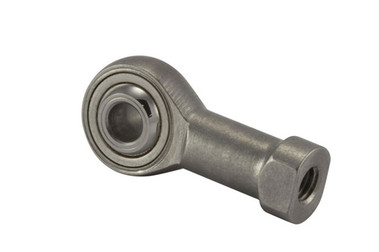

RBC Bearing SFLE545

  • SKUTD60JF
  • Brand
  • Manufacturer Part #SFLE545
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing SFLE545 Specifications

  • Ball Diameter:
    11.11 mm
  • Ball Material:
    Stainless Steel
  • Ball Width:
    8 mm
  • Bore Diameter:
    5 mm
  • Head Diameter:
    16 mm
  • Head Width:
    6 mm
  • Housing Material:
    Stainless Steel, Hardened
  • Length to Ball Center:
    35 mm
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    248ºF
  • Misalignment Angle:
    13º
  • Operating Temperature Range:
    -22 to 248°F
  • Overall Height:
    43 mm
  • Race Material:
    Uniflon® Self Lubricating Fabric
  • Radial Static Load Capacity:
    674.43 lbf
  • Rod End Type:
    Female Threaded
  • Series:
    SFLE Series Self-Lubricating
  • Shank Thread Length:
    12.50 mm
  • Shank Thread Size:
    M5 x0.8
  • Thread Direction:
    Left Hand
  • Thread Type:
    Metric
  • Weight:
    0.03 lbs
