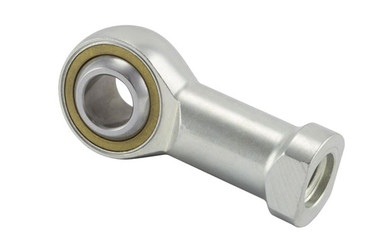

RBC Bearing SFLE14

  • SKUAZ48TE
  • Brand
  • Manufacturer Part #SFLE14
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing SFLE14 Specifications

  • Ball Diameter:
    25.40 mm
  • Ball Material:
    Chrome Steel
  • Ball Width:
    19 mm
  • Bore Diameter:
    14 mm
  • Head Diameter:
    34 mm
  • Head Width:
    13.50 mm
  • Housing Material:
    52100 Bearing Steel
  • Length to Ball Center:
    74 mm
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    248ºF
  • Misalignment Angle:
    16º
  • Operating Temperature Range:
    -22 to 248°F
  • Overall Height:
    91 mm
  • Race Material:
    Uniflon® Self Lubricating Fabric
  • Radial Static Load Capacity:
    5867.52 lbf
  • Rod End Type:
    Female Threaded
  • Series:
    SFLE Series Self-Lubricating
  • Shank Thread Length:
    25 mm
  • Shank Thread Size:
    M14 x2
  • Thread Direction:
    Left Hand
  • Thread Type:
    Metric
  • Weight:
    0.33 lbs
