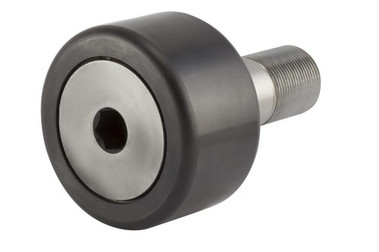

RBC Bearing S192LW

  • SKUVA49FT
  • Brand
  • Manufacturer Part #S192LW
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$2,020.40

RBC Bearing S192LW Specifications

  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    3000 lbf
  • Dynamic Capacity:
    57100 lbf
  • EAN or UPC:
    637400007522
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Housing Bore:
    2 1/2 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    800 rpm
  • Lube Fitting Size:
    1/4 NPT
  • Lube Hole Diameter:
    0.187 in
  • Material:
    Steel
  • Overall Length:
    9 9/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    6 in
  • Roller Type:
    Straight
  • Roller Width:
    3 1/4 in
  • Static Capacity:
    165000 lbf
  • Stud Dia.:
    2 1/2 in
  • Stud Length:
    6 in
  • Stud Type:
    Standard
  • Thread Length:
    3 in
  • Thread Pitch:
    N/A
  • Thread Size:
    2.5
  • Thread Type:
    UN
  • Threads per Inch:
    12
  • Track Capacity (40 HRC):
    52000 lbf
  • Weight:
    32.85 LB
