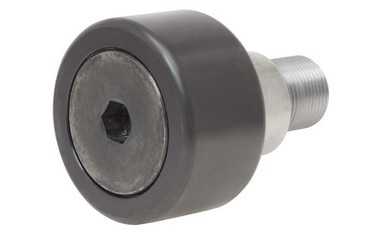

RBC Bearing S128LWX

  • SKUOG58TZ
  • Brand
  • Manufacturer Part #S128LWX
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$418.08

RBC Bearing S128LWX Specifications

  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    3000 lbf
  • Dynamic Capacity:
    23300 lbf
  • EAN or UPC:
    637400007393
  • Eccentric Bushing Diameter:
    2 in
  • Eccentric Bushing Length:
    2 in
  • Eccentricity:
    0.06 in
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Hex Size:
    3/4 in
  • Housing Bore:
    2 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    1300 rpm
  • Lube Fitting Size:
    1/4 in
  • Material:
    Steel
  • Overall Length:
    5 25/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    4 in
  • Roller Type:
    Straight
  • Roller Width:
    2 1/4 in
  • Static Capacity:
    73100 lbf
  • Stud Dia.:
    1 1/2 in
  • Stud Length:
    3 1/2 in
  • Stud Type:
    Eccentric
  • Thread Length:
    1 1/2 in
  • Thread Pitch:
    N/A
  • Thread Size:
    1.5
  • Thread Type:
    UNF
  • Threads per Inch:
    12
  • Track Capacity (40 HRC):
    22000 lbf
  • Weight:
    8.22 LB
