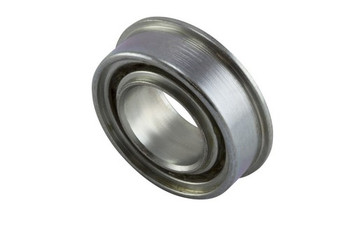

RBC Bearing RF122214

  • SKUHN11NO
  • Brand
  • Manufacturer Part #RF122214
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing RF122214 Specifications

  • Bearing Material:
    Carbon Steel - Case Hardened
  • Bore Diameter:
    0.7500 in
  • Bore Type:
    Round
  • Cage Material:
    No Cage
  • Closure Type:
    Open
  • Dynamic Load Capacity:
    600 lbf
  • Finish/Coating:
    Uncoated
  • Flange Diameter:
    1.5000 in
  • Inner Ring Width:
    0.5000 in
  • Internal Clearance:
    C0
  • Maximum RPM:
    1000 rpm
  • Outer Ring Width:
    0.4375 in
  • Outside Diameter Design:
    Flanged
  • Outside Diameter:
    1.3750 in
  • Overall Width:
    0.5000 in
  • Precision Rating:
    Not Rated
  • Series:
    Heim®
  • Snap Ring Included:
    Without Snap Ring
  • Weight:
    0.11 lbs
