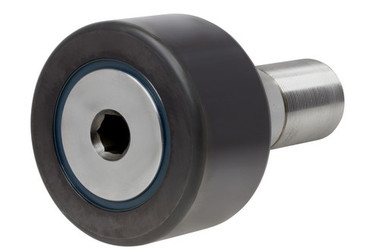

RBC Bearing RBC5

  • SKUSQ10LX
  • Brand
  • Manufacturer Part #RBC5
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,803.45

RBC Bearing RBC5 Specifications

  • Bearing Type:
    Cylindrical Roller Bearing
  • Clamp Torque:
    3000 lbf
  • Dynamic Capacity:
    71000 lbf
  • EAN or UPC:
    637400022181
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Hex Size:
    7/8 in
  • Housing Bore:
    2 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    2000 rpm
  • Material:
    Steel
  • Overall Length:
    7 27/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    5 in
  • Roller Type:
    Straight
  • Roller Width:
    2 3/4 in
  • Static Capacity:
    96600 lbf
  • Stud Dia.:
    2 in
  • Stud Length:
    5 1/16 in
  • Stud Type:
    Standard
  • Thread Length:
    2.563 in
  • Thread Pitch:
    N/A
  • Thread Size:
    2
  • Thread Type:
    UN
  • Threads per Inch:
    12
  • Track Capacity (40 HRC):
    35000 lbf
  • Weight:
    18.7 LB
