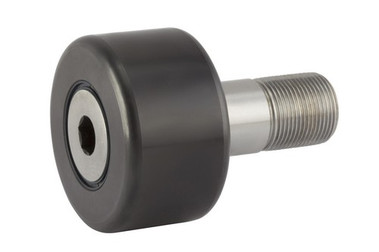

RBC Bearing RBC4

  • SKUYN34RB
  • Brand
  • Manufacturer Part #RBC4
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$440.03

RBC Bearing RBC4 Specifications

  • Bearing Type:
    Cylindrical Roller Bearing
  • Clamp Torque:
    3000 lbf
  • Dynamic Capacity:
    45600 lbf
  • EAN or UPC:
    637400022174
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Hex Size:
    3/4 in
  • Housing Bore:
    1 1/2 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    2600 rpm
  • Material:
    Steel
  • Overall Length:
    5 25/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    4 in
  • Roller Type:
    Straight
  • Roller Width:
    2 1/4 in
  • Static Capacity:
    57100 lbf
  • Stud Dia.:
    1 1/2 in
  • Stud Length:
    3 1/2 in
  • Stud Type:
    Standard
  • Thread Length:
    1 1/2 in
  • Thread Pitch:
    N/A
  • Thread Size:
    1.5
  • Thread Type:
    UNF
  • Threads per Inch:
    12
  • Track Capacity (40 HRC):
    22000 lbf
  • Weight:
    7.44 LB
