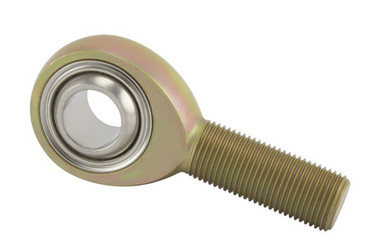

RBC Bearing MEL14

  • SKUEH29AB
  • Brand
  • Manufacturer Part #MEL14
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing MEL14 Specifications

  • Axial Static Load Capacity:
    3320 lbf
  • Ball Diameter:
    1.3750 in
  • Ball Material:
    440C Stainless Steel
  • Ball Width:
    0.8750 in
  • Bore Diameter:
    0.8750 in
  • Grade:
    Military
  • Head Diameter:
    2.0250 in
  • Head Width:
    0.7650 in
  • Housing Material:
    4340 Alloy Steel
  • Length to Ball Center:
    2.0000 in
  • Lubrication Type:
    Self-Lubricatable
  • Maximum Operating Temperature:
    250ºF
  • Misalignment Angle:
    7º
  • Operating Temperature Range:
    Max 250°F
  • Overall Height:
    4.3875 in
  • Race Material:
    17-4 PH Heat Treated, PTFE
  • Radial Static Load Capacity:
    34500 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    MEL Series Self-Lubricating
  • Shank Thread Length:
    2.0000 in
  • Shank Thread Size:
    41858
  • Standards Met:
    SAE-AS81935, SAE-AMS-QQ-P-416 Type 1 Class 2, SAE-AMS-H-6875, SAE-AMS-H-7199, ASTM-E-1444, SAE-AS81820
  • Thread Direction:
    Left Hand
  • Thread Type:
    UNJF-3A
  • Weight:
    0.96 lbs
